133 Teeth Cast Iron Valeo Flywheel C0702753 / 835071 37mm Height

Jinhuan Auto Parts Manufacturing Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

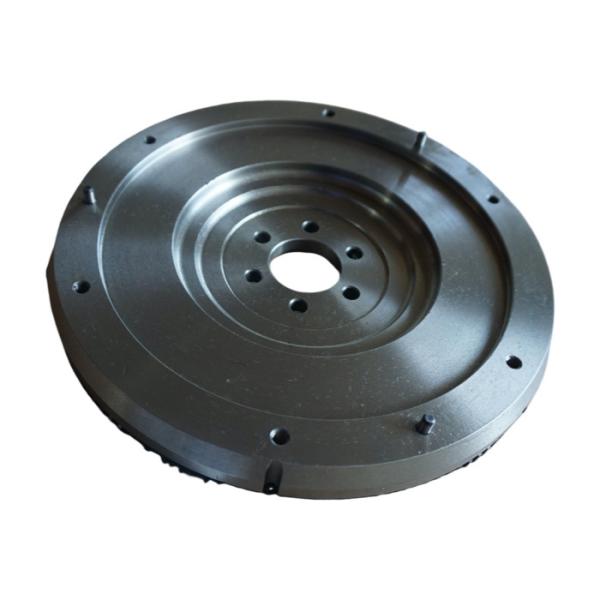

133 Teeth Cast Iron Valeo Flywheel C0702753 / 835071 37mm Height

  • 1
  • 2

Model Number : Valeo/133 teeth cast iron flywheel

Certifiion : IATF 16949

Place of Origin : China

MOQ : Negotiation

Price : Negotiation

Packaging Details : Standard Packaging

Payment Terms : L/C,T/T,etc.

OE No. : C0702753/835071

Model : Valeo/133 teeth cast iron flywheel

Height : 37

Material : cast iron

Teeth : 133

Outer Diameter : 291.2

Contact Now

Description

Please click to view Flywheel alog!.pdf

1. The flywheel product is made of standard HT250 material, the hardness of the matrix reaches 170-200HB, the ring gear part is made of standard 45# alloy steel, and the high-frequency quenching process is adopted. The hardness of the teeth can reach 48-58HRC, which makes the product more heat-resistant and wear-resistant. more durable.

2. Our company uses fully automatic CNC machine tools, machining centers, and dynamic balancing equipment in the processing process to ensure that the processing accuracy of the product is better, and it can reach the dimensional accuracy of the original car factory, so that the sound of the product is smaller and more stable when it is used. .

3. The inspection adopts 3-D Measuring/Metallurgical Micro-test/Hardness test/Tension test and other equipment to ensure that there will be no defective products in the factory.

4. Export products are made of high-strength five-layer A-grade cartons, painted with anti-rust oil on the outside, and covered with anti-rust sealed bags to ensure that the products will not be rusted due to transportation problems.



Principle

It contributes to the overall stability and control of the vehicle by reducing engine vibrations and providing a smoother driving experience.



Details

Teeth  133
For Coupling Size(mm) 230
Clutch Holes&Size (mm) 6-Φ9.5
Outer Diameter 291.2
Inner Diameter(mm) 43
Height 37
Pitch Cride (mm) 66
Clutch Pitch Cride(mm) 256



Crafts

Machining

133 Teeth Cast Iron Valeo Flywheel C0702753 / 835071 37mm Height133 Teeth Cast Iron Valeo Flywheel C0702753 / 835071 37mm Height

Drilling Injection Holes

133 Teeth Cast Iron Valeo Flywheel C0702753 / 835071 37mm Height133 Teeth Cast Iron Valeo Flywheel C0702753 / 835071 37mm Height

Dynamic Balance

133 Teeth Cast Iron Valeo Flywheel C0702753 / 835071 37mm Height133 Teeth Cast Iron Valeo Flywheel C0702753 / 835071 37mm Height

Mark

133 Teeth Cast Iron Valeo Flywheel C0702753 / 835071 37mm Height

Package

133 Teeth Cast Iron Valeo Flywheel C0702753 / 835071 37mm Height







Inspection

Tension Test

133 Teeth Cast Iron Valeo Flywheel C0702753 / 835071 37mm Height133 Teeth Cast Iron Valeo Flywheel C0702753 / 835071 37mm Height

Metallurgical Micro-Test

133 Teeth Cast Iron Valeo Flywheel C0702753 / 835071 37mm Height133 Teeth Cast Iron Valeo Flywheel C0702753 / 835071 37mm Height

Hardness Test

133 Teeth Cast Iron Valeo Flywheel C0702753 / 835071 37mm Height133 Teeth Cast Iron Valeo Flywheel C0702753 / 835071 37mm Height

3D Measuring

133 Teeth Cast Iron Valeo Flywheel C0702753 / 835071 37mm Height133 Teeth Cast Iron Valeo Flywheel C0702753 / 835071 37mm Height
